Empowering agriculture with digital intelligence supporting China and influencing the world

On July 30th, Jiangsu Three&Three's second-generation livestock and poultry vehicles were officially released, among which the mobile intelligent pig production performance measurement vehicle is worth paying attention to!

Production performance testing is the foundation of pig breeding and genetic breeding. Only accurate performance testing can obtain various information needed for pig breeding in China, thereby promoting pig breeding work. Of course, experienced breeders can also estimate body mass by visually measuring the body size, but this method cannot be quickly replicated and promoted, and the error is relatively large.

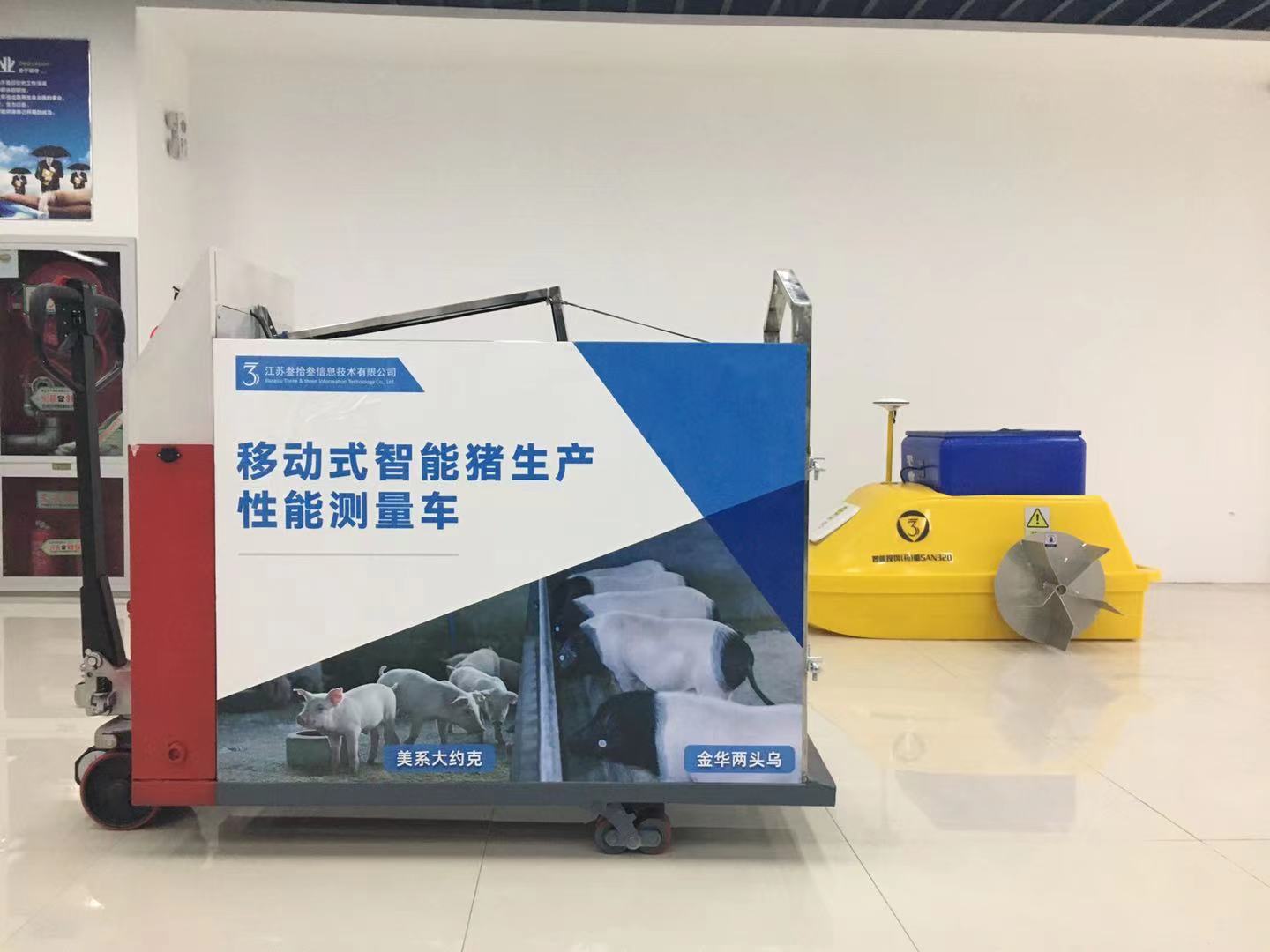

Jiangsu Three&Three implements scientific, rigorous, systematic, and standardized testing of pig production performance, and develops the second-generation mobile intelligent pig production performance measurement vehicle. Assist agricultural practitioners in obtaining comprehensive and authentic breeding information, avoiding the problems of low efficiency in manual body measurement and large errors in visual body measurement, thereby improving the efficiency of breeding work. The mobile intelligent pig production performance measurement vehicle is a safe, convenient, and accurate measuring device that can quickly measure physiological characteristics such as height, length, weight, and width of breeding pigs.

1. System features

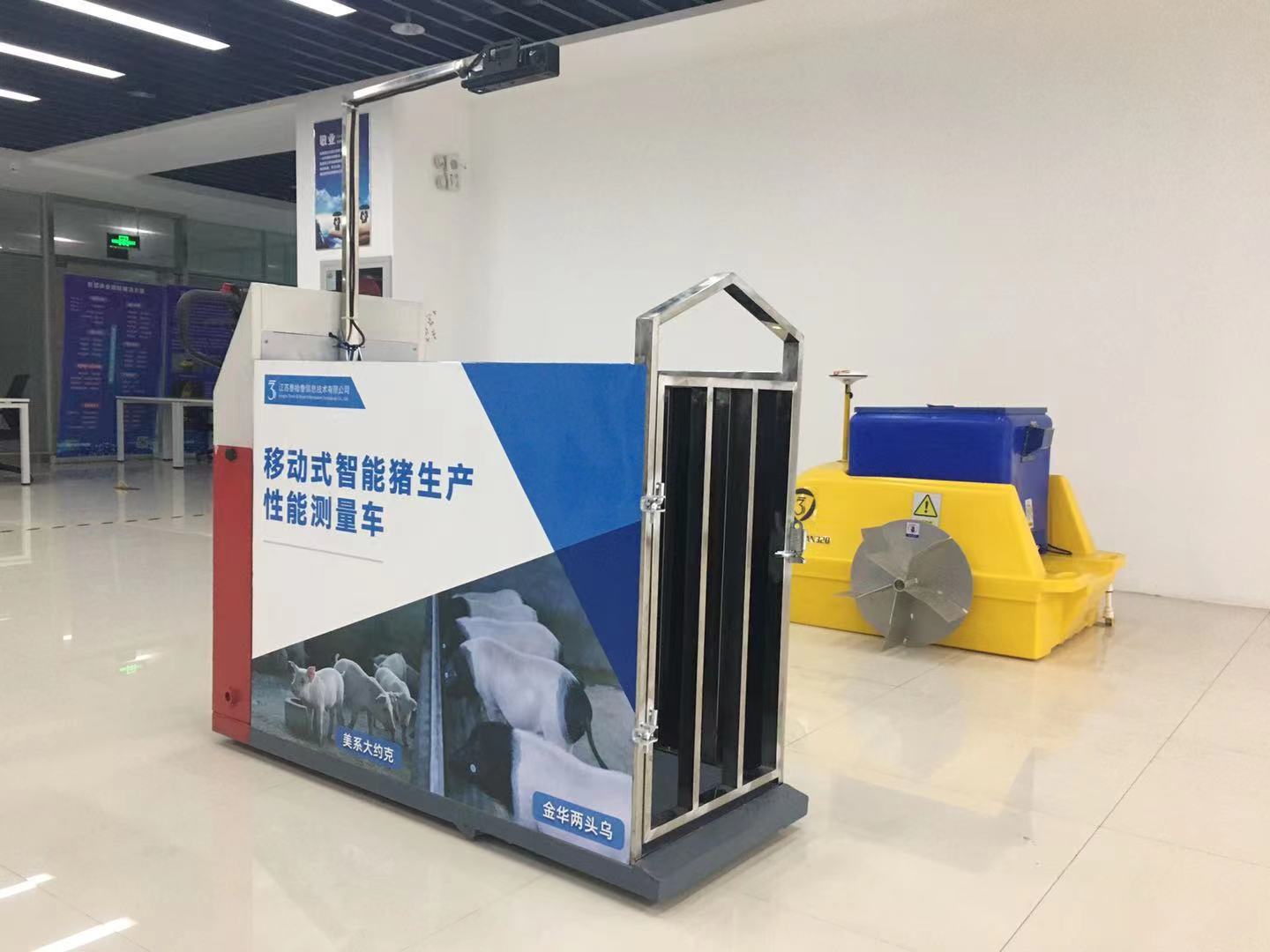

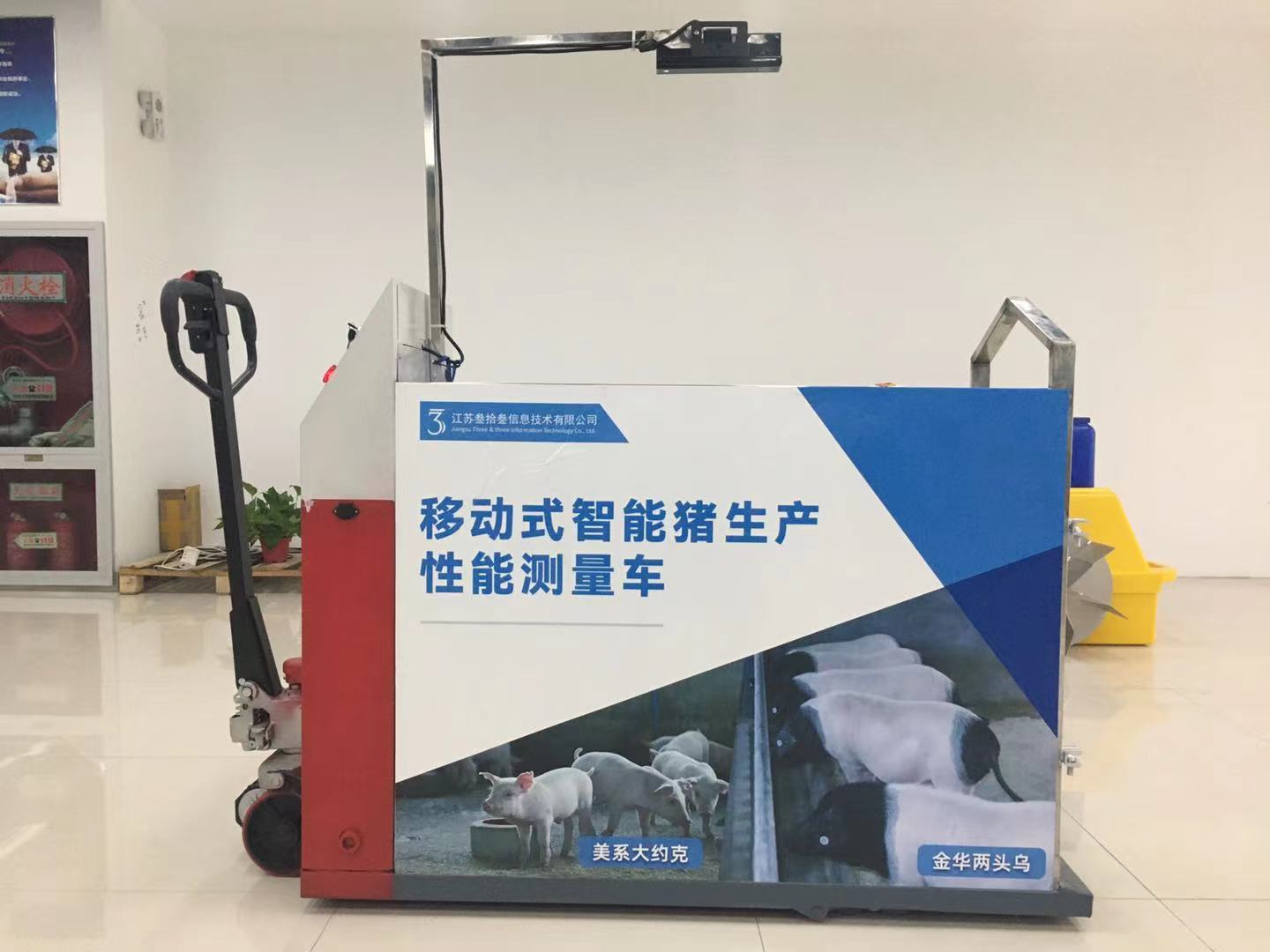

The measuring vehicle is equipped with an intelligent dual drive electric chassis, powered by a large capacity lithium battery, which can easily achieve forward, backward, and turning; The chassis can be raised and lowered to solve travel problems caused by high ground slopes or potholes. The measuring vehicle is equipped with high-precision grating sensors and weighing sensors, which are used to automatically measure the body height and weight of breeding pigs. The upper part of the measuring vehicle is equipped with a depth of field stereo camera, which automatically recognizes the body length and width of the breeding pig through image algorithms. The measurement vehicle is equipped with a dedicated onboard industrial computer and an industrial touch screen display to achieve functions such as visual recognition, algorithm optimization, and data uploading.

2. System composition

Stainless steel monitoring cage, electric chassis, industrial computer (including industrial grade shock resistant host, touch screen, transmitter, wireless network card, etc.), livestock scale, depth of field binocular stereo camera, measurement grating, power lithium battery and other supporting equipment.

3. Technical indicators

The weight calculation is automatically measured by a livestock scale, with a range of 0-1000KG and an error of ≤ 0.5KG. Measure the body height of pigs using a dedicated grating, with a range of 0-95CM and an error of ≤ 1CM. Measure the body length and width of pigs using a depth of field stereo camera with an error of ≤ 2CM.

China is a major pig raising country, but not a strong pig raising country. There is still a long way to go from a major pig raising country to a strong pig raising country. Jiangsu Three&Three has improved the level of pig production performance testing through this optimization, providing a reliable data source for breeding and ensuring the accuracy and reliability of the testing results.

As a technology innovation enterprise, Jiangsu Three&Three fully integrates intelligence and agriculture, striving to become a strong backing for China's pig breeding industry. We believe that in the near future, there will be more professional independent breeding leading enterprises in China's pig breeding industry!
